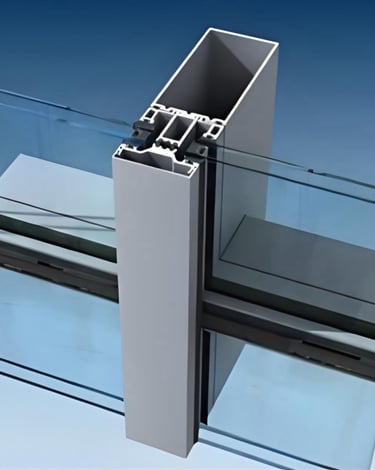

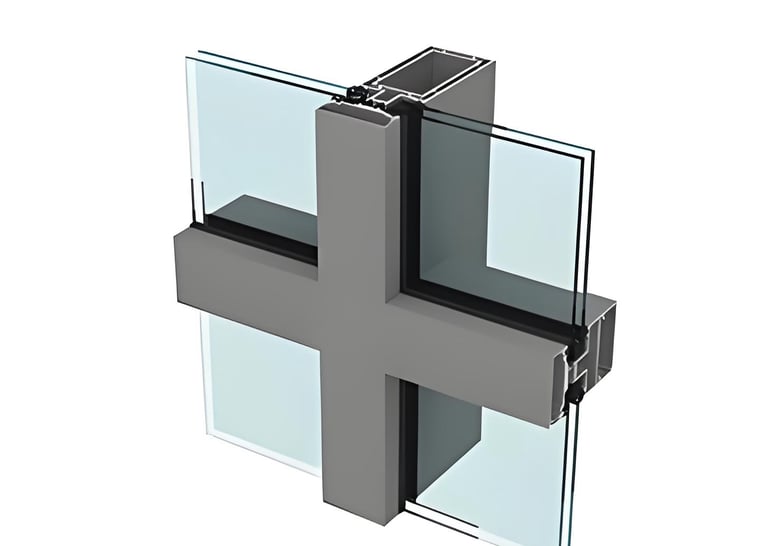

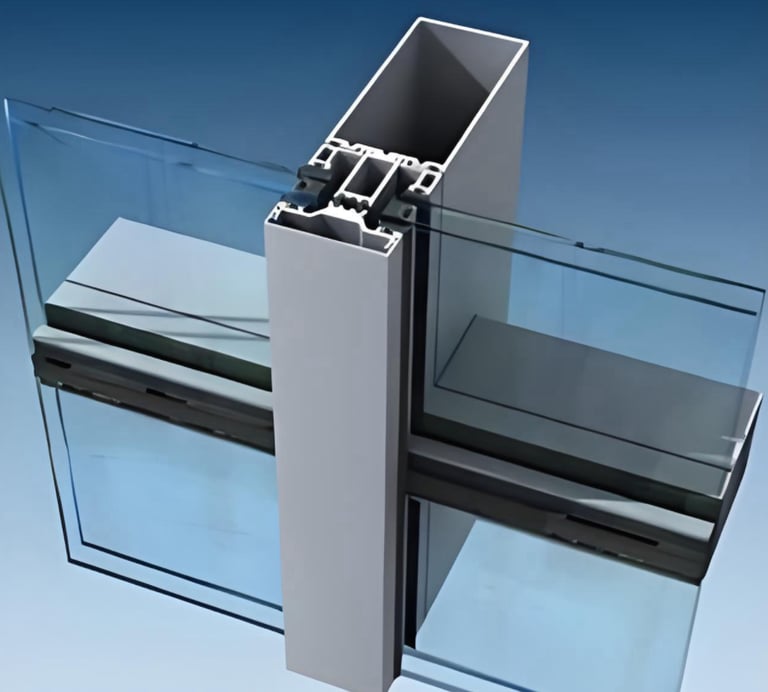

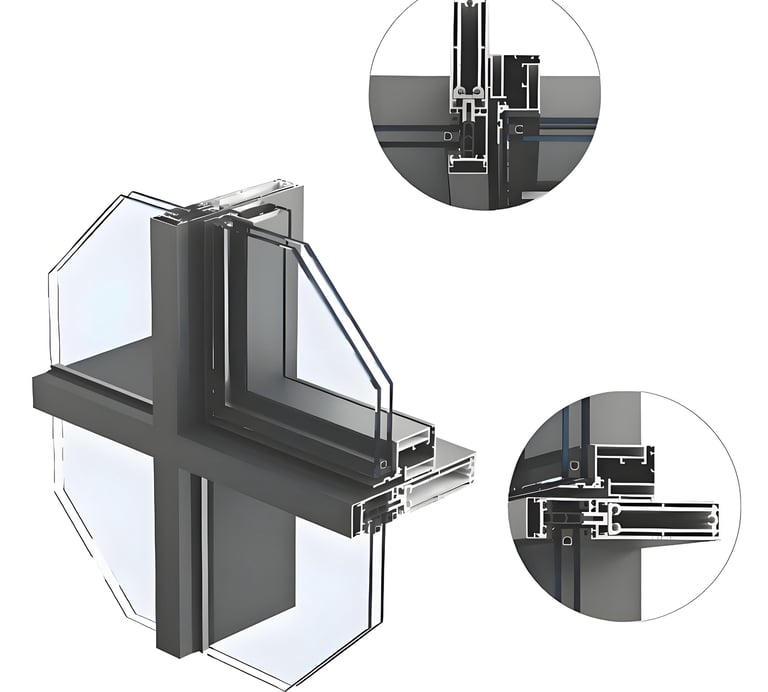

Aluminum Frame Exposed and Frame Semi-concealed Glass Stick Curtain Wall

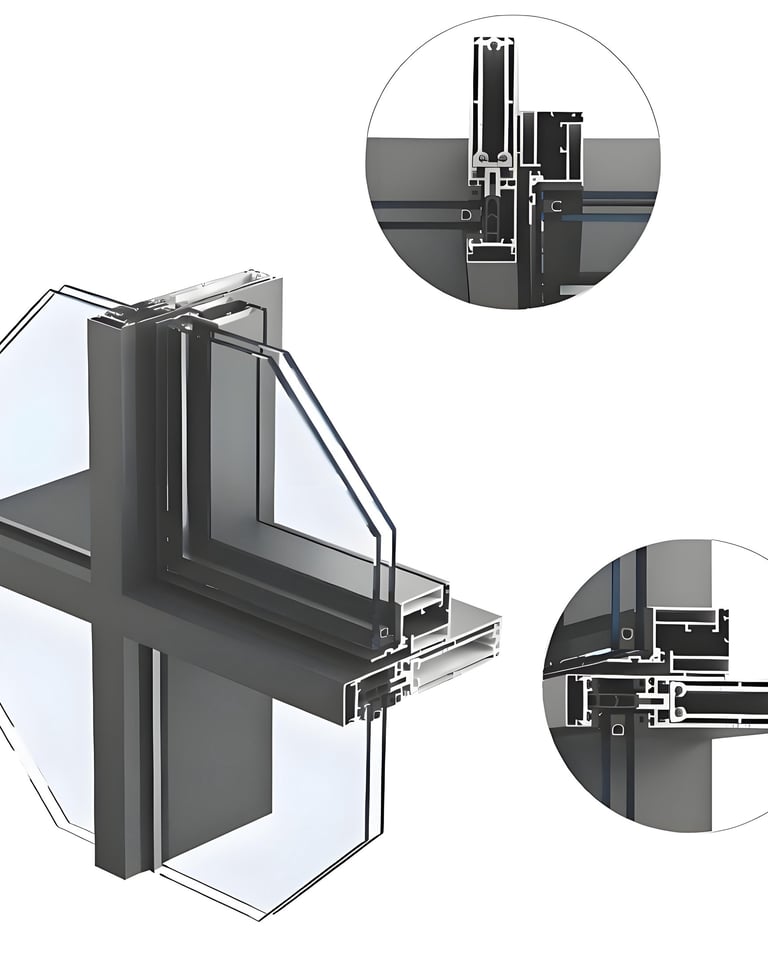

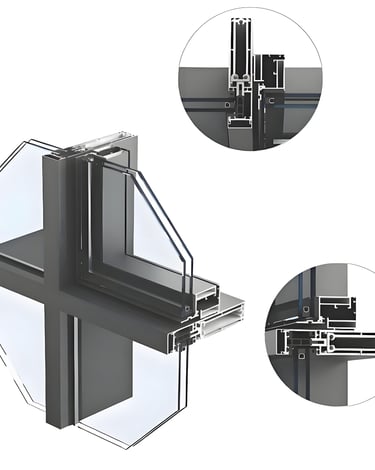

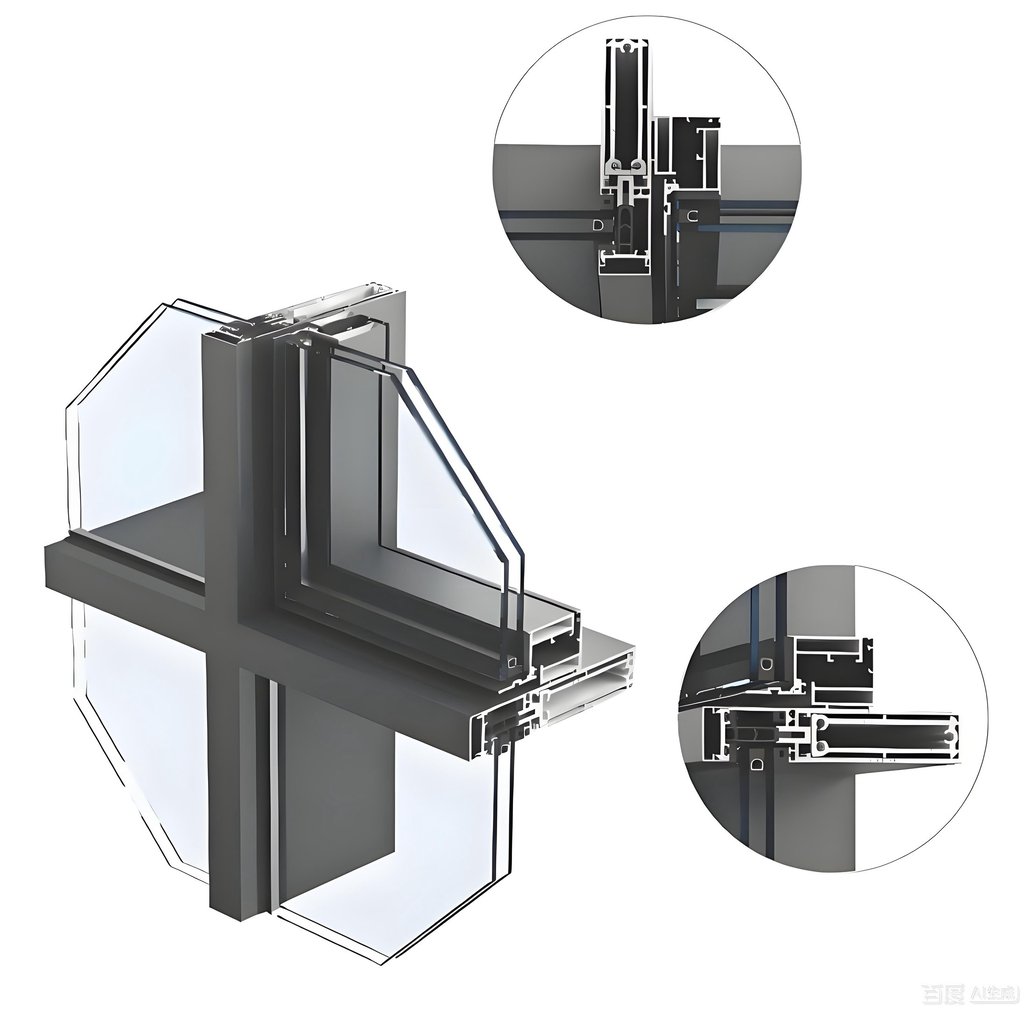

35mm Slimline(narrow frame) Curtain Wall

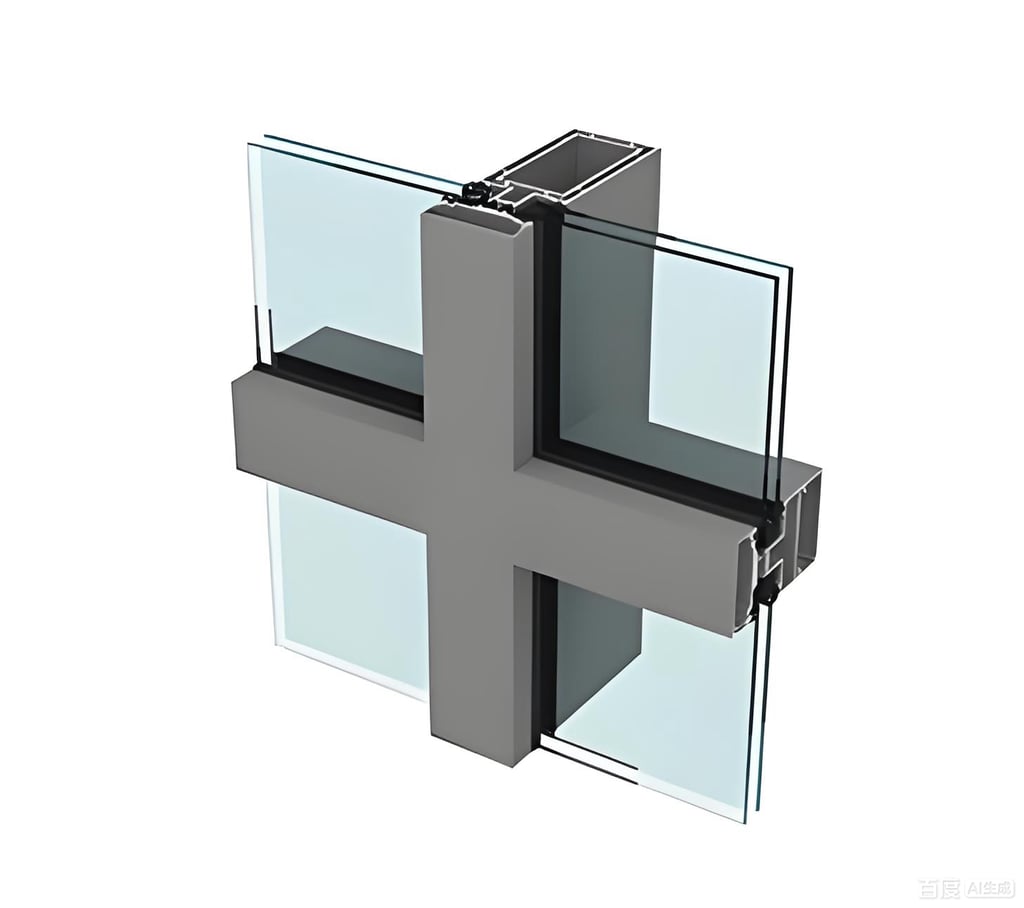

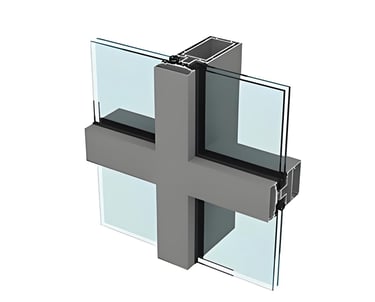

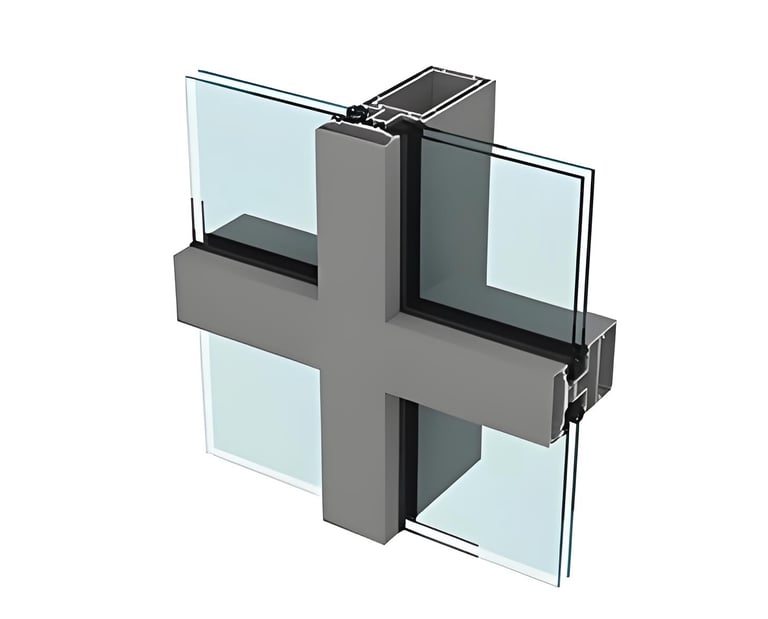

The curtain wall glass of this type of curtain wall is fixed to the curtain wall keel through its outside long pressure plate and the decorative capping covers the pressure plate from the outside. View from outdoor, it's like that the keel of the curtain wall is exposed outside the glass. The elevation appearance effect can be enhanced through changes in the form of decorative cover.
The main technical features of exposed and semi-concealed frame curtain wall system of Yuanda are as follows:
●Two layers of seals are formed at the inside and outside of the glass where in contact with the pressure plate by respectively setting a complete and continuous sealing structure to ensure sealing performance and water resistance of the system.
●Glass pressure plate is connected stably by screws to the main keel. And the glass is fixed to the main keel by use of fixed-distance-type clamping measure to achieve the effective control of flatness of the glass installation without creating installation stress.
●Heat insulation measures are adopted at connection position between glass clamp and the main keel to stop internal and external heat transfer, and improve effectively the thermal performance of the system.
●The degree of tightness at the connection between glass clamp and decorative cover plate is adjustable, which not only ensures stable clipping and convenient installation, but also can avoid looseness of cover plate and making noise.

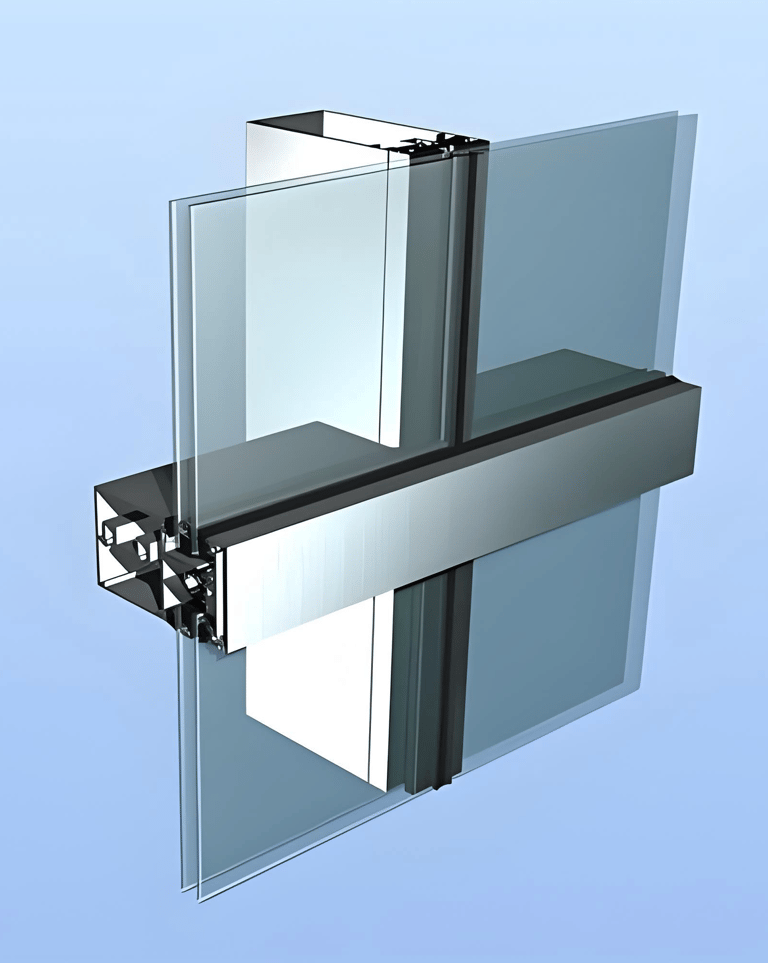

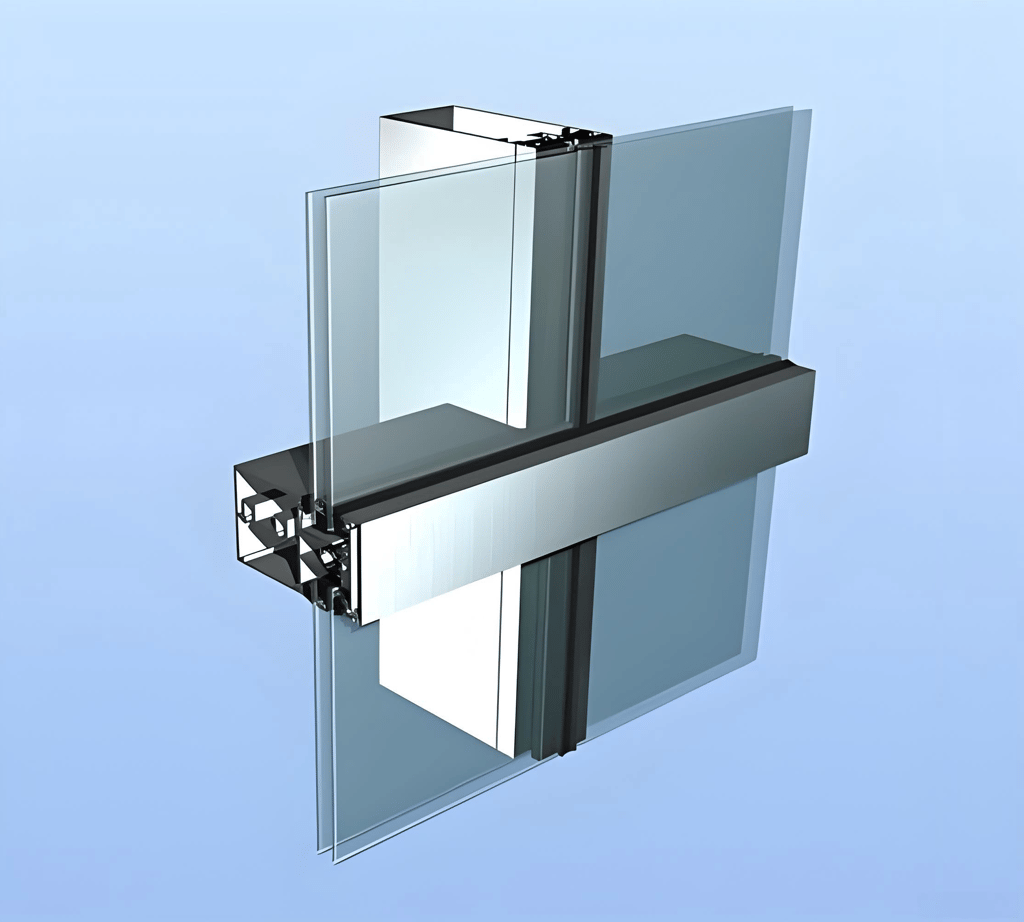

Semi-concealed Curtain Wall-Vertical concealed +Horizontal exposed
